PCB Anti-metal Tags

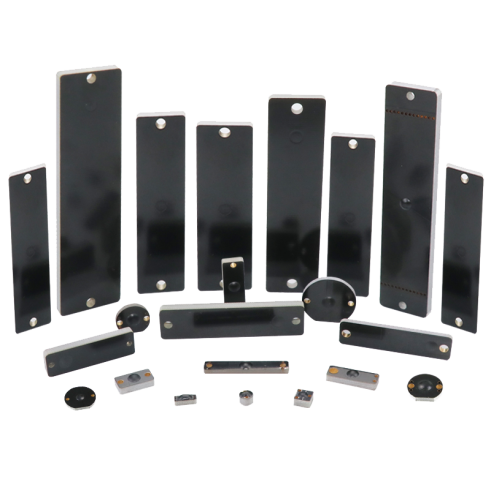

PCB Anti-metal Tag Introduction
PCB Anti-metal Tag On-metal tag is constructed with FR-4 materials with IP68 rated,it is high reliability and durability suitable for in all types of environments including outdoor waterproof,strong acid,strong base.It was proved to use over 5 years in outdoor.
PCB Anti-metal Tag Technical parameters

Color:	Black
Weight:	3.5g
Working Temp:	-40~ +85℃
Survive Temp:	-40~+150℃
IP Rating:	IP68
Humidity:	98% Non-condensing
RFID Standard:	ISO/IEC 18000-6C (EPC Gen2)
Chip Type:	Impinj Monza 4E/4QT,Alien Higgs-3
EPC Memory:	496 bits/128 bits
TID Memory:	128 bits/512 bits
Read Range(2W ERP):	2.7m
Data Storage:	> 10 years
Re-write:	100,000 times
Installation:	3M adhesive, Rivet,Magnet
Customization:	Printing LOGO, Serial number, Encoding, Designing,etc
Package:	100pcs/bag

PCB Anti-metal Tag dimensions are as follows

PCB Anti-metal Tagdiameter 5mm	PCB Anti-metal Tag 6mm	PCB Anti-metal Tag diameter 10mm
PCB Anti-metal Tag diameter 13mm	PCB Anti-metal Tag diameter 16mm	PCB Anti-metal Tag diameter 20mm
PCB Anti-metal Tag6*3mm	PCB Anti-metal Tag6*6mm	PCB Anti-metal Tag8*3mm
PCB Anti-metal Tag10*4mm	PCB Anti-metal Tag13*7mm	PCB Anti-metal Tag15*4mm
PCB Anti-metal Tag18*6mm	PCB Anti-metal Tag22*8mm	PCB Anti-metal Tag25*10mm
PCB Anti-metal Tag30*5mm	PCB Anti-metal Tag33*10mm	PCB Anti-metal Tag36*13mm
PCB Anti-metal Tag40*10mm	PCB Anti-metal Tag50*10mm	PCB Anti-metal Tag52*13mm
PCB Anti-metal Tag70*20mm	PCB Anti-metal Tag80x8m	PCB Anti-metal Tag80*20mm
PCB Anti-metal Tag80*20mm	PCB Anti-metal Tag90*20mm	PCB Anti-metal Tag90*20mm
	For other sizes, please contact customer service
PCB Anti-metal Tag95*25mm
